 Design Feature
|
|
|
|
|
|
Continuous magnification is possible from actual size up to x400
(on a 14-inch monitor screen) without having to switch lenses.
(Approximately x900 on a 32-inch monitor. *VL-11SL magnifies up to x200.)
|
|
|
|
|
|
|
|
|
Compact size (85mm x 80mm x 205mm) and light weight (approx. 600g) enables free use and portability.
|
|
|
|
|
|
|
|
|
Simple controls with magnification and focus dials only.
|
|
|
|
|
|
|
|
|
410,000-pixel color CCD camera enables resolution exceeding 460-line horizontal resolution TV's.
|
|
|
|
|
|
|
|
|
Compact ring light gives uniform illumination.
|
|
|
|
|
|
|
|
|
Enables enlargement of any objects, including integrated circuits, fibers, printed material, paint surfaces, or blades.
|
|
|
|
|
|
|
|
|
Bright and vivid images can be displayed at all magnifications.
|
|
|
|
|
|
|
|
|

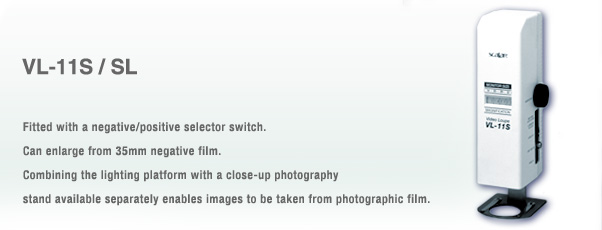

Personal type TV microscope.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pixels
|
1/3-inch color CCD camera x410,000 pixels
|
|
Illumination
|
5W ring fluorescent lamp
|
|
Power supply
|
100V AC, 50/60Hz
|
|
Image output
|
NTSC system, video output: RCA/S jacks
|
|
Resolution
|
over 460 line horizontal resolution
|
|
Operating conditions
|
0 - 40C, Humidity: 40 - 80% (with no condensation)
|
|
S/N ratio
|
48dB min.
|
|
Exposure control
|
Electronic shutter, auto-variable 1/60 - 1/10000, 1/100 flicker-free
|
|
External dimensions
|
85mm x 80mm x 205mm (with stage stowed)
|
|
Weight
|
approx. 600g
|
|
Scanning system
|
2:1 interlaced, 525 rows, 60 fields
|
|
Tripod mounting screw
|
1/4-20 UNC
|
|
White balance
|
Fixed when ON; auto when OFF
|
|
Magnification
|
x1 - x400 infinitely variable type (on 14-inch monitor) (x1 - x200 for SL)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Magnification
|
VL-11S
|
VL-11SL
|
|
50
|
16mm
|
41mm
|
|
100
|
9
|
28
|
|
200
|
5
|
22
|
|
300
|
3
|
-
|
|
400
|
2
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Magnification
|
VL-11S
|
VL-11SL
|
|
50
|
114microns
|
1600microns
|
|
100
|
350microns
|
440microns
|
|
200
|
150microns
|
200microns
|
|
300
|
80microns
|
-
|
|
400
|
50microns
|
-
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Magnification
|
VL-11S
|
VL-11SL
|
| 50 |
5.2x4.0mm |
| 100 |
2.6x2.0mm |
| 200 |
1.3x1.0mm |
| 300 |
0.87x0.67mm |
- |
| 400 |
0.65x0.5mm |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
