Digital/Analog Microscope SDA-2

Introduction

Observation and Inspection improvements increase.
Magnification imaged on TV & PC.

Microscope connectable to PC and TV.
May be used with any particular output device. Lens exchange not necessary. Magnification from 0x to 300x is possible.

Windows Vista(32bit)/7(32&64bit)/8(32&64bit)｡ｧCompatible.
* We confirmed it worked with Windows XP , but now we will not support it since MicroSoft has terminated its support of XP.

LED illumination control/Brightness control/Negative-positive function

The supplied remote controller works for the illumination control , brightness control and negative-positive function.
Lights are set respectively on four lines , the upper , the lower , the left and the right side , and around the lens in the center. In addition to full illumination with four lights , we have achieved to illuminate the light from the side by switching to each side light individually.
You can clearly observe bumpy surfaces of objects by applying the light differently. The strength of the light is freely adjustable. You will also be able to take shots in a negative-positive mode so you can observe a more optimal image.

High sensitivity CCD camera

We have achieved a shooting output of 510,000 pixels ( effective pixels 480,000) by using high sensitivity CCD.
Color reproducibility of the object also is better than the "SDA-1".

Connectable to TV and PC. May be used with any particular output device

Easy to operate and low cost

Continuous expanded magnification from 0x up to 300x without exchanging lenses.

Bright and vivid images at all magnifications are achievable.

May be used in all industries as quality control, inspection applications, research and education

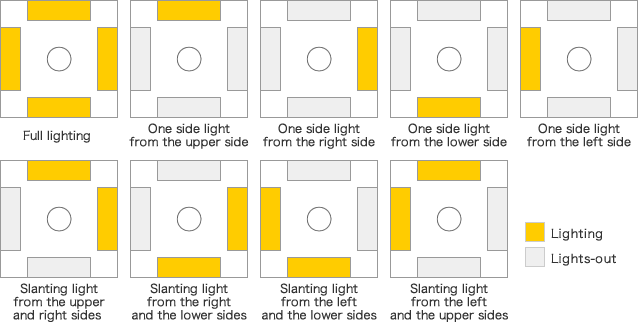

Nine illumination patterns available (we use LED as the light source)

Nine_illumination_patterns

Specifications

Imager1/4 inch CCD 510,000 pixels, Effective pixels: 480,000 pixcels
InterfaceVideo Out Terminal:NTSC, RCA Connector
USB Terminal:USB mini B
(8bitVideoA-D,Maximum Resolution 720 x 480)
Magnification1x-300x
Light SourceWhite LED
Image SettingWhen the light is on: Fixed White Balance. AGC, Auto Shutter Speed. (When the illumination brightness control operates with the remote controller ,the gain shutter is fixed.)
When the light is off: Auto White Balance. AGC, Auto Shutter Speed.
Power Supply voltageDC12V(AC Adaptor Supplied AC100-240 50/60Hz)
Power Consumption500mA or below
Operating Temperature0-40
Operating and Storage Humidity20-80%(no-condensation)
Dimensions85x80x205mm
WeightApprox. 600g
ApplicationViewer ( Accessary of SDA-2 )
Camera Thread Input1/4-20 UNC
Optional AccessoriesStand PR-ST11XY(with XY stage ) Stand PR-ST11 (No XY stage)
XYZ Stand
Two-dimensional image measurement software(MicroMeasure)
System RequirementWindows XP SP2 Windows Vista(32bit) Windows 7(32&64bit) Windows8(32&64bit) (We confirmed it worked with Windows XP , but now we will not support it since MicroSoft has terminated its support of XP. )
USB Port:Factory installed USB 2.0
CPU:Pentium4-1GHz or above or equivalent AMD processor.
Operating Distance
MagnificationOperating Distance(mm)Focal Depth(µm)Field of View(mm)
505520005.2x4
100375502.6x2
150324401.73x1.33
200282501.3x1
250272001.04x0.8
300261600.8x0.67

Download

Acrobat You need Adobe Acrobat Reader to open PDF files.

Manual

Windows XP / Vista / 7 / 8
OpenSoftware manual English/Japanese version.

Software

Windows 8
DownloadLatest Application 'Scalar SDA Ver1.01alpha for Windows 8'
Windows XP / Vista / 7
DownloadLatest Application 'Scalar SDA Ver1.01alpha'
How to Install
  1. Click Download button to download.
  2. 'Scalar SDA Ver1.01ｦﾁ'. Double click it to make a new folder named.
  3. 'Scalar SDA Ver1.01ｦﾁ'. Double click 'autorun.exe' in 'Scalar SDA Ver1.01ｦﾁ' folder to upgrage.

* For first time use, install 'Scalar SDA Ver1.01ｦﾁ' before you connect the Scalar SDA-1 MICROSCOPE to a PC.
* See User's manual for details of this software.
