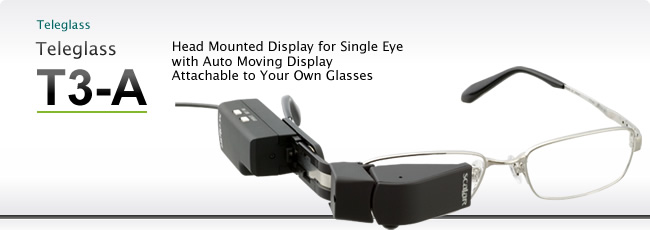

Teleglass T3-A

Introduction

World's First HMD with Auto Moving Display

An ultra-small display placed at temple of your forehead moves to front of your eye with easy operation whenever you want to use Teleglass.

Compact body is only 35g. Since T3 is for single eye, you can see around you at the same time. The main unit is detachable from your glasses.

28 Inches Monitor 2 Meters Away

Image from T3 is equivalent to a 28-inch screen located 2 meters away from you. And it also does not prevent you from seeing around you. 80,000 pixels(320(H)×240(V):approx. 230,000 picture elements)


Attachable to Your Own Glasses.


With the attached kit, you can attach T3-A to your glasses. It is applicable to most of general glasses frames. Because the attachment is very small, you do not feel troublesome even with it. You can carry the teleglass and wear it if necessary.
* There are two kinds of attachment base, large and small. You can attach it to glasses whose frame is up to 3.6mm wide.

Optional Product
AttachmentKit
T3 Attachment Kit

Optional attachment kit in case you want to attach T3 to 2 or more glasses or you lose the kit.

Content of Basic Set

Teleglass T3-A
  • TeleglassT3-A body (battery box)
  • Attachment kit (S/L size, each 1. Incl. mini screwdriver)
  • RCA adaptor cable
  • Tow AA batteries
  • Manual

Specifications

Imaging inputVBS 1.0Vp-p 75Ω(NTSC input)
Audio inputAudio(L/R) Input impedance 33KΩ
Input terminal3.5φ AV input terminal(3P)
The standard specifies connection with iPod (Plug: white).
Only iPod is acceptable which doest not detect a chip.
Display element0.24-inch approx. 80,000 pixels(960(H)×240(V):approx. 230,000 picture elements)The image is equivalent to 28-inch screen 2m away from you.
View angle20 degrees(2θ)
Audi outputAudio(L/R)28mW+28mW (32Ω)
Output terminal3.5φ3P stereo output (2P)
Continuous duty timeApprox. longer than 4 hours (alkaline dry cells)
PowerTwo AA batteries (alkaline or nickel)
Working conditionsTemperature:0℃ - 40℃ / Humidity:10% - 80% (Non condensation)
WeightApprox. 35g, battery box approx. 22g (excluding batteries)

Applications

Enjoy movie with portable devices
photo Teleglass can work with any devices that send out NTSC signals. You can enjoy movies and images any time and anywhere. Have good time seeing a movie or listening to music while you are moving a long distance on a train, an airplane, a ship, etc. during your trip, or a business trip or a long commuting.

NOTE) Please contact us when Teleglass doesn't work with your device.

Connect to Scalar products
photo If you connect Teleglass to Scalar devices, usage for industrial fields increases greatly.
When you cannot see the monitor well while you are using a microscope or an industrial endoscope, etc, or when it is difficult to see LCD under the sun light, Teleglass can help you to solve such problems.

In addition, Teleglass is indispensable when you make an inspection, etc. in case of disasters, on a business trip or at the place where a monitor is unavailable.
You can use it for a variety of fields such as beauty solon fields or medical fields according to the usages.
Suitable for an ultra-low angle monitor or a high angle monitor
Teleglass T3 is suitable for an ultra-low angle monitor or a high angle monitor.If you connect it with the AV output of a digital camera or a video camera, you can shoot a pet or flowers without stooping down.
A picture at low angle in particular is harder work than we imagine but Telegrass T3 enables you to shoot a picture easily even at such low position. We actually introduced Teleglass to several persons who were taking pictures of flowers at a park, we got good reactions from them because they do not need to buy a camera for low angle and the price of it is rather reasonable considering its versatility.
Application Example
These 2 gentlmens often take pictures from paragliders. But since they could not check their photos on flight, they used to get down to the ground and then check them.
They found and purchased Teleglass and they are using it. Now they can check pictures immediately after they take and since the monitor of T3 moves to the side when don't use it, it is very convenience for them.

FAQ

What is Teleglass?
Teleglass is an ultra-small monitor which can be attached to your glasses, receives NTSC video signals. Usual head-mounted displays (HMD) used to be the one which covers your sights completely and were not comfortable. But Teleglass is downsized and you can use it easily as if you wore only glasses.
What are the major applications?
You can use Teleglass as a video monitor of a variety of devices which have video output. For example, by connecting it with our microscope DG-3 which has NTSC video output, it will be much more easier to see the image of very high or very low places because DG-3's monitor is placed at its main body.
Of course, you can enjoy Teleglass while you are commuting.
What is the resolution?
The resolution of T3 series is about 80,000 pixels(320(H)×240(V):approx. 230,000 picture elements). The resolution is good enough to see the caption of DVD movies.
What kind of device can it be connect with?
Teleglass can be connected with any devices that have NTSC video output that include Scalar's microscopes, video camera, various measuring devices and others. In addition, you can use it as a monitor screen of a portable video player such as iPod of Apple Computer and a DVD player. ※iPod is a product name of Apple Computer.
Can it be connected with iPod?
Teleglass can be connected to iPod which is 5th generation or older.
For 6th generation or newer model, please contact us. We will introduce a device which can be an adaptor between iPod and Teleglass.
Can it be connected with PDA?
No, basically. If PDA has a built-in function that outputs NTSC video signals, it can be connected with Teleglass. But you will need a conversion cable.
Can it be connected with a cell phone?
No, basically. If your cell phone has a a NTSC video output, it can be connected with Teleglass. But you will need a conversion cable.
Can it be connected with a PC?
It cannot be connected with a PC as it is. You will need a down scan converter to convert signals into NTSC.
How long does T3 series work?
T3 series works for longer than 4 hours with two AA alkaline batteries. AA nickel hydrogen batteries can also be used. They can be used longer than alkaline batteries.
Can a person with bad eyes use it? (Near sight/distorted vision/far sight/old sight)
You can see the screen easily if you adjust it to your visibility.
Does long use of it affect our eyes?
Just like you usually get tired if you watch TV for a long time, take it that your eyes get tired if you use your teleglass for a long time. If you use it, try to take a proper rest. In addition, see to it that children under 13 years old will not use it.
Does it have a built-in TV tuner?
No. We will take it as an important reference to develop our new products in future.
What is the warranty?
1 year warranty.
Can we attach T3 series to any glasses?
You can attach T3 series to general glasses by a furnished attachment. Consult us first because we cannot meet special frames including special shape and size from time to time.
