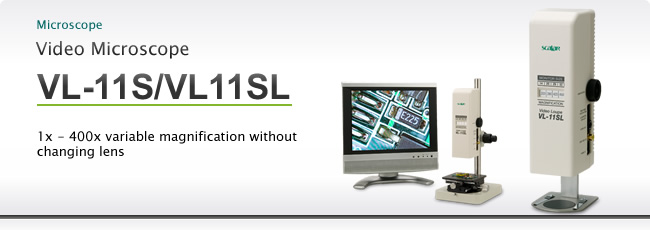

Introduction
Easy operation by using only a magnification dial and a focus dial
A camera with 410,000 pixel color CCD enables you to realize 460TV or higher horizontal resolution.
Suitable to check IC, thread, printing materials, painting surface and blade
Bright and vivid images at any magnification
Small, light and easy to use
Small (85¡ß80¡ß205mm), light ( about 600g) body is easy to carry.
A small ring light (fluorescent light) enables you to realize steady and even light with high color repeatability.
No need to change lens
You can continue to magnify the image from 1x to 400 x magnification on a 14-inch video monitor. (900 x magnification can be realized on 32-inch video monitor.¡Ë
* VL-11SL model goes up to 200x.
Content of Basic Set
| VL-11S | VL-11SL | |
| 50x | 16 mm | 41 mm |
|---|---|---|
| 100x | 9 mm | 28 mm |
| 200x | 5 mm | 22 mm |
| 300x | 3 mm | - |
| 400x | 2 mm | - |
| VL-11S | VL-11SL | |
| 50x | 5.2¡ß4.0 mm | |
|---|---|---|
| 100x | 2.6¡ß2.0 mm | |
| 200x | 1.3¡ß1.0 mm | |
| 300x | 0.87¡ß0.67 mm | - |
| 400x | 0.65¡ß0.5 mm | - |
Specifications
| Imager | 1/3-inch, 410,000-pixel CCD camera |
|---|---|
| Light Source | 5W ring fluorescent lamp |
| Power Source | AC100V 50/60Hz |
| Image Output | NTSC system Video output: RCA jack/S jack |
| Resolution | 460 or higher horizontal resolution |
| Environmental Conditions | Temperature:0-40¡î Humidity:¡§40-80¡ó(No condensation) |
| S/N Ratio | 48dB or higher |
| Exposure Control | Electronic shutter, automatically variable between 1/60-1/10000, 1/100 flicker-free |
| Outside Dimensions | 85¡ß80¡ß205mm(when the stage is stored) |
| Weight | Approx. 600g |
| Scan Mode | 2:1interlaced, 525 rows, 60 fields |
| Tripod Mounting Screw | 1/4-20 UNC |
| White Balance | Fixed when the light is ON; automatic when the light is OFF |
| Magnification | VL-11S: 1-400 x magnification infinitely variable (on a 14-inch monitor) VL-11SL:1-200 x magnification infinitely variable (on a 14-inch monitor) |
