Wi-Fi Video Transmitter for HD VT-200

Introduction

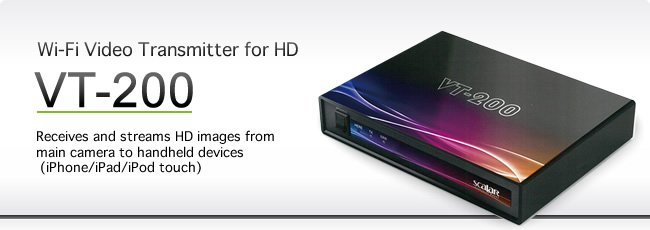

VT-200

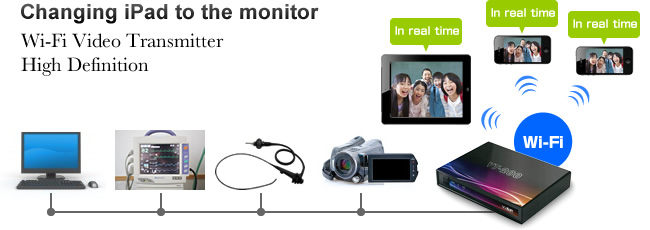

VT-200 is a new wireless transmitter which sends images from the PC, HD camera, endoscope, microscope and monitors to iPhone/iPad/iPod touch via WiFi and shares the images in real time. VT-200 compresses the high definition video signal in real time and outputs WiFi image in IEEE802.11a./b/g/n spec.

Simultaneous transmission to multiple devices

One can see the same image on multiple devices.¡¡One can also use about 10 to 20 additional iOS and Android units. The actual number of connected devices is affected by the radio wave environment and the image type.
* Compatibility with Android is under development.

Real time images

One can see real-time video on all devices because the VT-200 has nearly no delay. "Pinch-in" or "pinch- out" is available with this device.

Vivid images (high definition)

VT-200 can transfer still images and video as high-definition. It displays a sharp, clear image. Still images can be saved in the device as well.

It was used for training education

training

VT-200 transmits video from a recent surgery. Others looking on with their iPad¡Çs or Androids can see the live video anywhere in the room and record it.

Specifications

Basic Specifications

Item Specification Remarks
Input Signal HD IN connecter x 1 All connecting devices are not guaranteed to work with this product. DVI signal compliance. Voice non-compliant
Input Resolution 1080p,1080i,720p,480p. 60Hz each. All of connecting devices is not guaranteed to connect
Video Monitor Output None
Output Resolution 720p,480p Approx less than 30fps It changes depending on the resolution,the image quality, the radio wave condition and the performance of the receiving device. Please set the output resolution from the Viewer.
WiFi output IEEE802.11 b/g/n (2.4 GHz band) IEEE802.11a/n(5GHz band) Please change 2.4 / 5 GHz with the wireless LAN setting- change- menu. The simultaneous output is not possible.
WiFi method Access Point
LAN Terminal RJ45
ANT Built-in ANT
Compress method MJPEG
Voice Input/Output Image only
Number of the connecting device simultaneously 10-15 devices It changes depending on the resolution, the image quality, fps, the radio wave condition and the performance of the receiving device
Distance to reach 10-30m (No obstacle) It changes depending on the resolution, the image quality, fps, the radio wave condition and the performance of the receiving device
Corresponding display software iOS=ScalarView (AppStore)
Windows (Undecided)
Android (Undecided)
Planning to offer SDK of iOS 		You may create your own application with the SDK
Wi-Fi, SSID, Password SSID="VT-200-5G"(Initialization )
Password="None"(Initialization)
( Possible to set WEP,WPA.WPA2, etc. ) 		Possible to chage the setting from the wireless LAN setting-change-menu.
Power Switch ON/OFF Rocker Switch
Built-in green LED lights up when the power is ON
Display LED Yellow LED flashes every one second after the start completes . Orange LED flashes matching the output image. Red LED lights up at the time of error in recognition of the input
Battery Operaton None Compatible with custom-made
Power Jack Outer diameter 5.5φ, Innder diameter 2.1φ, center plus
Power Consumption 5V approx 2A, approx 10W
Operating Temperature 0-35ºC¡ÊNon condensing)
Radio Act Technique applied authenticated FCC, CE, etc. will be applied individually and separetely
Safety Stadard Planning VCCI(B) FCC, CE, etc. will be applied individually and separetely
Dimension , Weight 225(W) x 40(H) x 165(D) Approx 920g
Accessories AC Adapter, Instruction Manual, Usage Guidance . LAN cable, Relay connector
Remarks   Specifications are subject to change without notice due to development and improvement of the performance .

Others

We provide the following as the viewer software (application)

  • iOS Viewer software ¡§ScalarView

¢¨You can download the above app free of charge from the AppStore.
